Plumbing Connections

View All Technical Resources

Plumbing connections on Metcraft security fixtures are made per conventional industry standards. The following details illustrate standard plumbing connections. Please refer to supplementary information covering valve applications. Always follow local plumbing codes.

Basic Floor Outlet Toilet Waste Connection

Note: All waste connections provided by others.

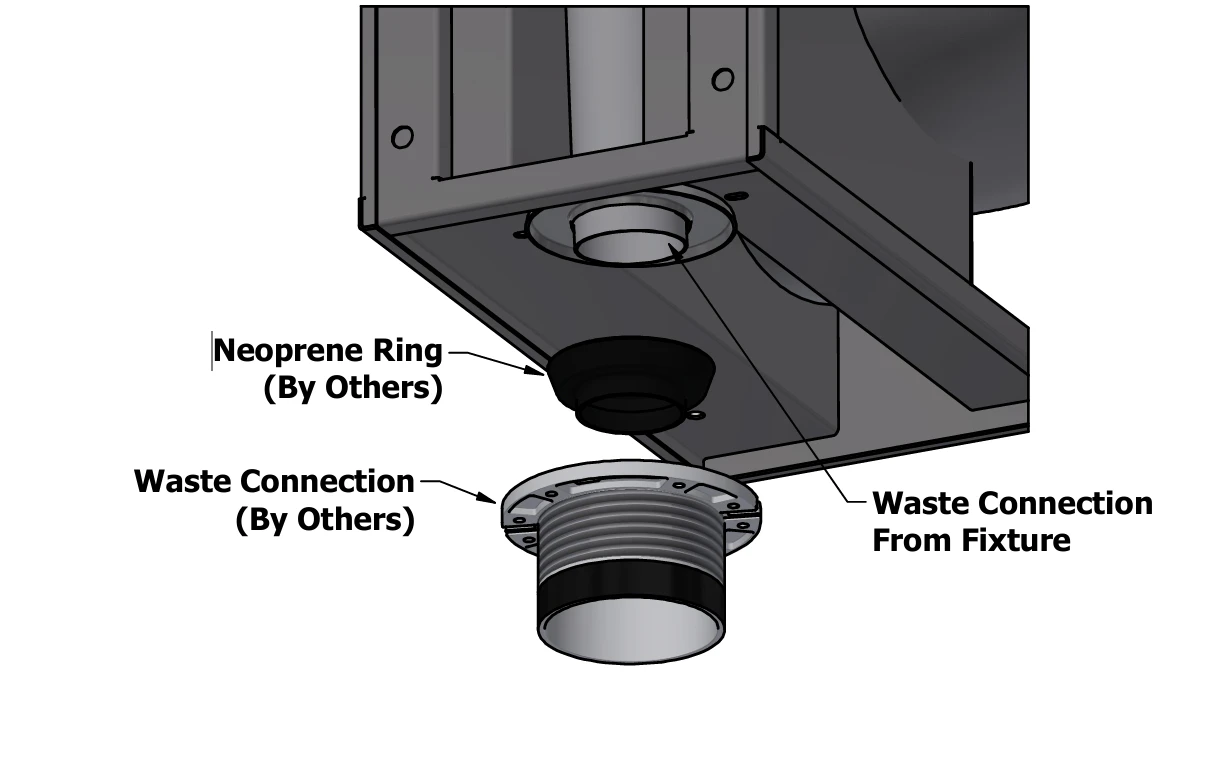

A diagram of a toilet waste connection with a basic floor outlet.

Basic Wall Outlet Toilet Waste Connection

Note: All waste connections provided by others.

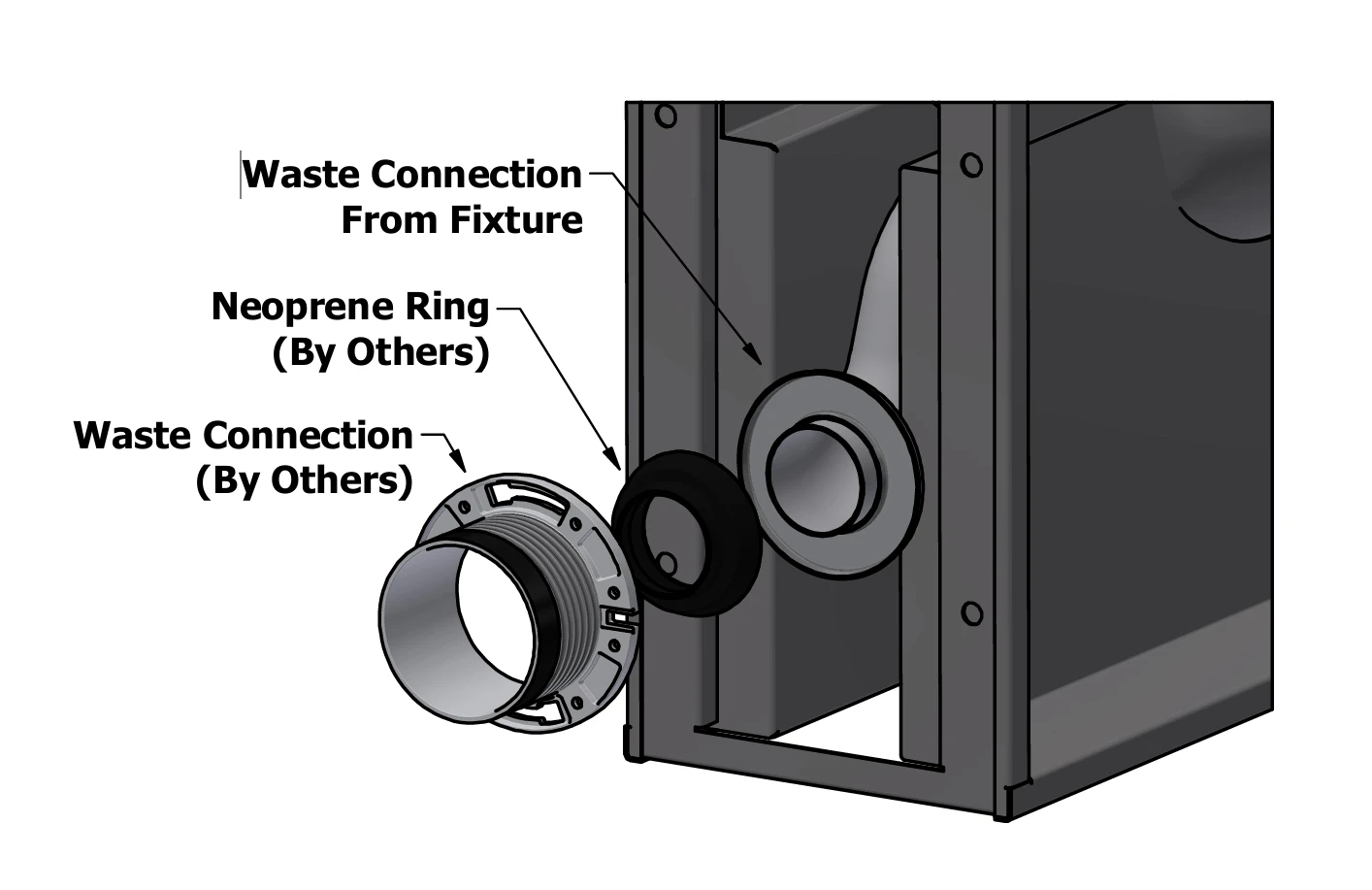

A diagram of a toilet waste connection with a basic wall outlet.

Basic Wall Outlet No-Hub Toilet Waste Connection

Note: Available as an optional accessory, see A210 options on submittal.

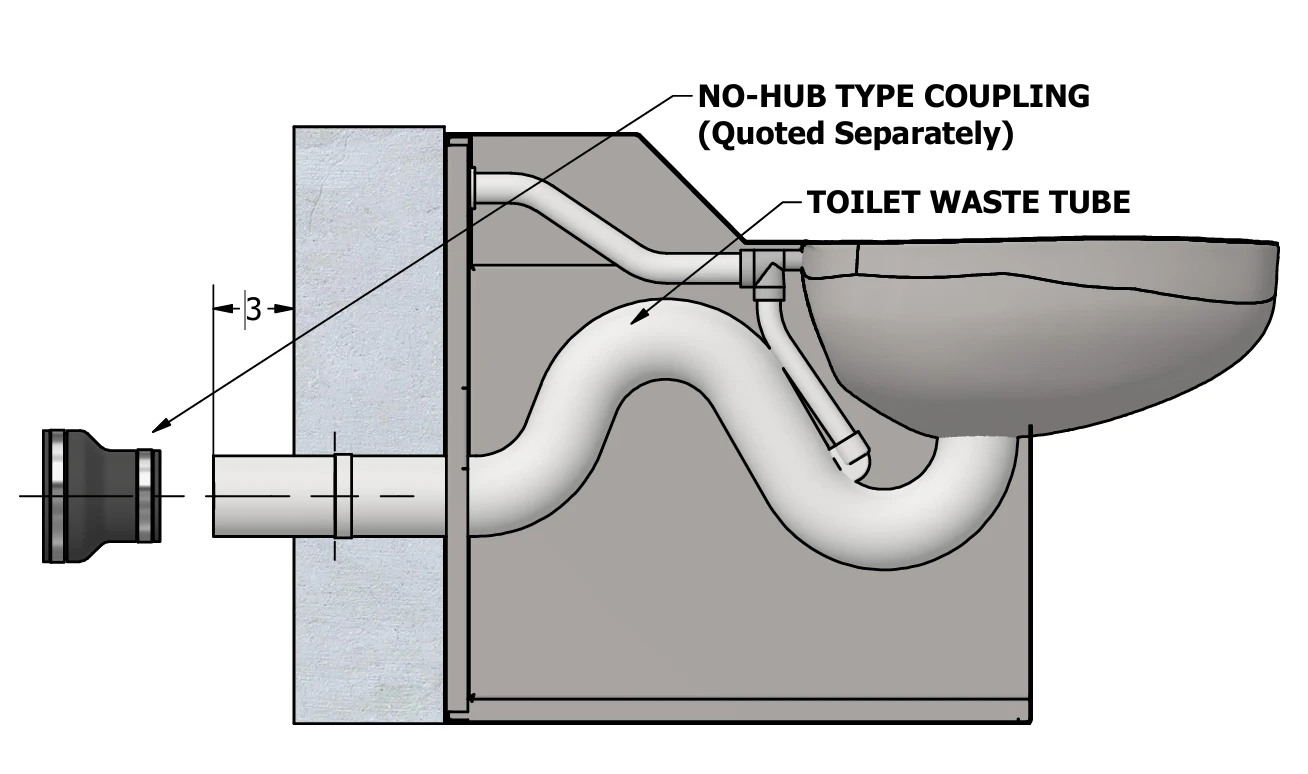

A diagram of a toilet waste connection with a basic wall outlet (no-hub).

Basic Flush Inlet Plumbing Connection

Note: Available as an optional accessory, see A247 option on submittal.

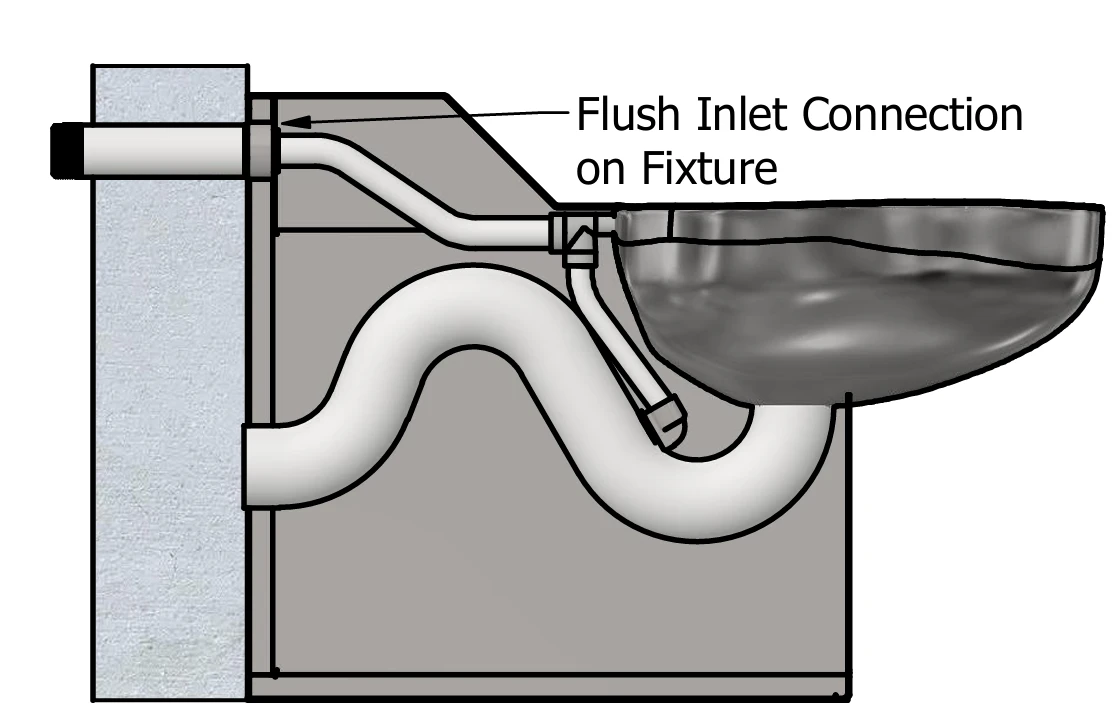

A diagram of a plumbing connection for a basic flush inlet.

Basic Sink Waste Connection

Note: All waste connections provided by others.

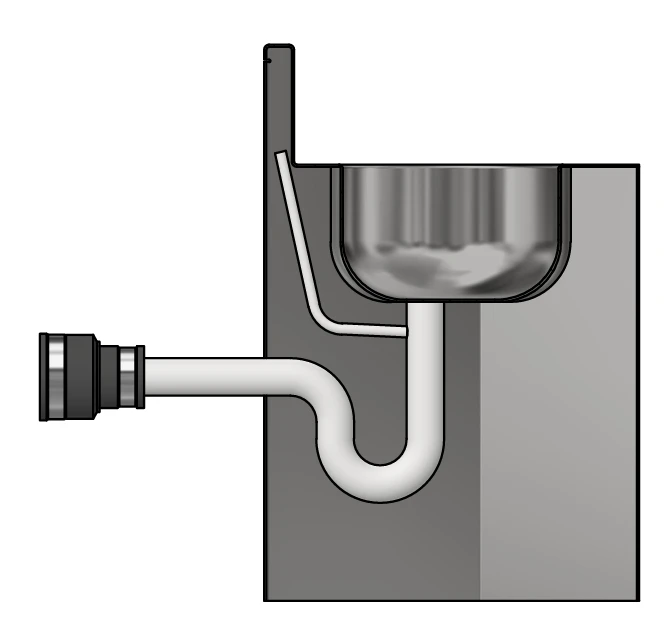

A diagram of a basic sink waste connection.
