Installation Instructions
- Locate rough-in position on wall and ensure that the wall structure has sufficient strength to support the fixture and the loads the fixture may experience.
- When fixtures are secured to hollow stud walls, adequate framing should be installed in wall where the fixture can be attached to framing.
- Fixture must installed level and plumb to function properly.
- Z-bracket wall hanger is supplied with the fixture to hang lavatory on.
- Additional mounting holes in lavatory body for added support.
- Rough-in all plumbing connections required by fixture. Refer to the submittal drawing for all required holes and wall openings. Contact Metcraft directly for additional rough-in information.
- Position the lavatory p-trap for lavatory waste connection.
- Attach all backsplash trim including push buttons and bubbler. Verify bubbler orientation according to bubbler option ordered.
- Unit is now ready for final positioning.

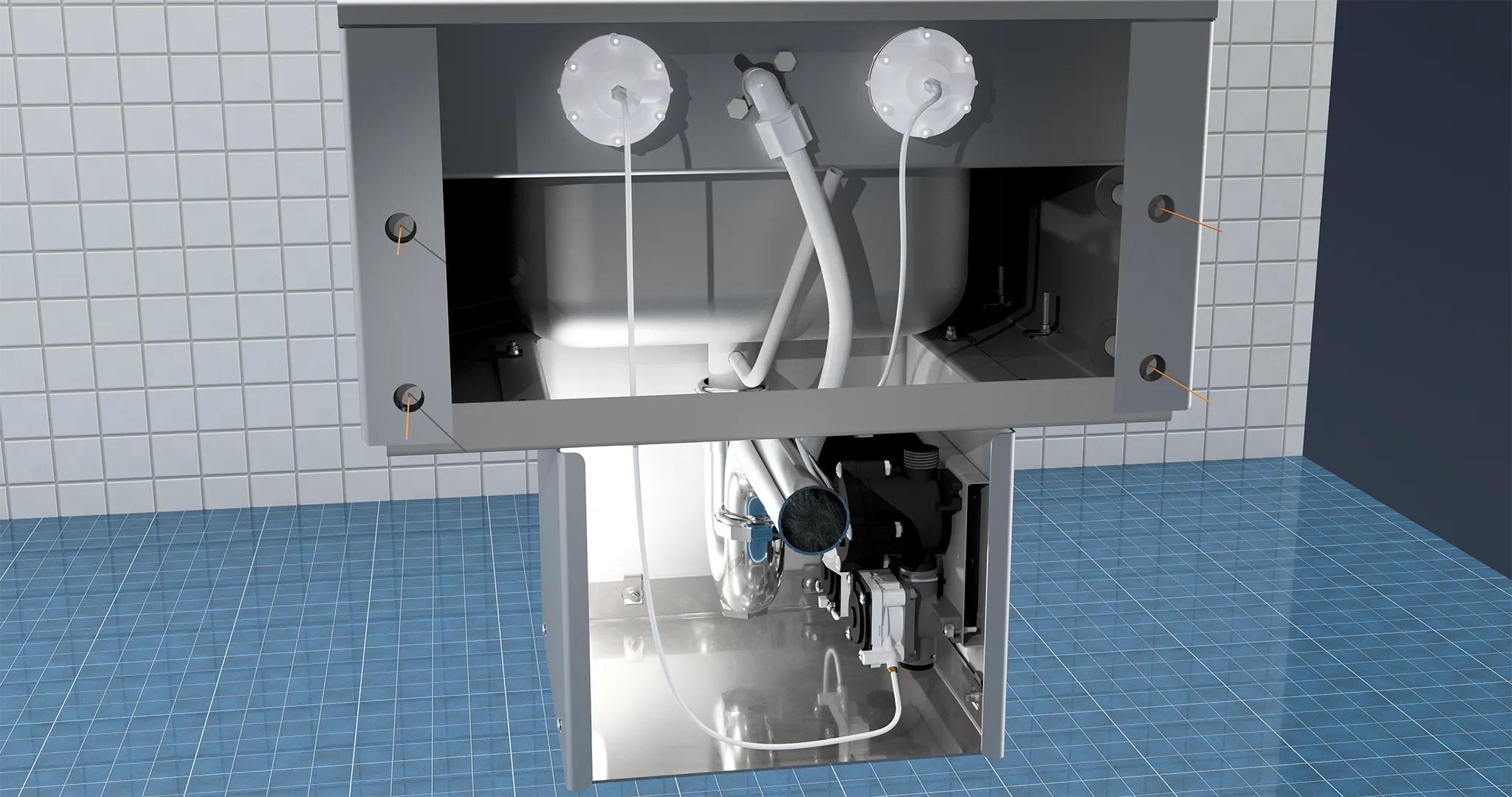

- Secure the fixture to the wall using wall anchors. Anchor positions are indicated on the submittal. Wall anchors are not supplied by Metcraft.
- Plumbing connections can be connected using bottom trap enclosure access on the fixture.
- Upon complete installation, when fixture is secure, plumbing connections are not leaking, and fixture functions properly.
- Reattach the bottom access panel on the underside of the lavatory. Do not use a cordless drill or impact on the tamper resistant screws as this may strip the screws out.
- Security caulk may be used to fill any gaps between fixture and wall.
- A parts catalog and installation instructions are supplied with each fixture for reference.
- Trouble shooting information and videos are on the website Metcraft.com.
