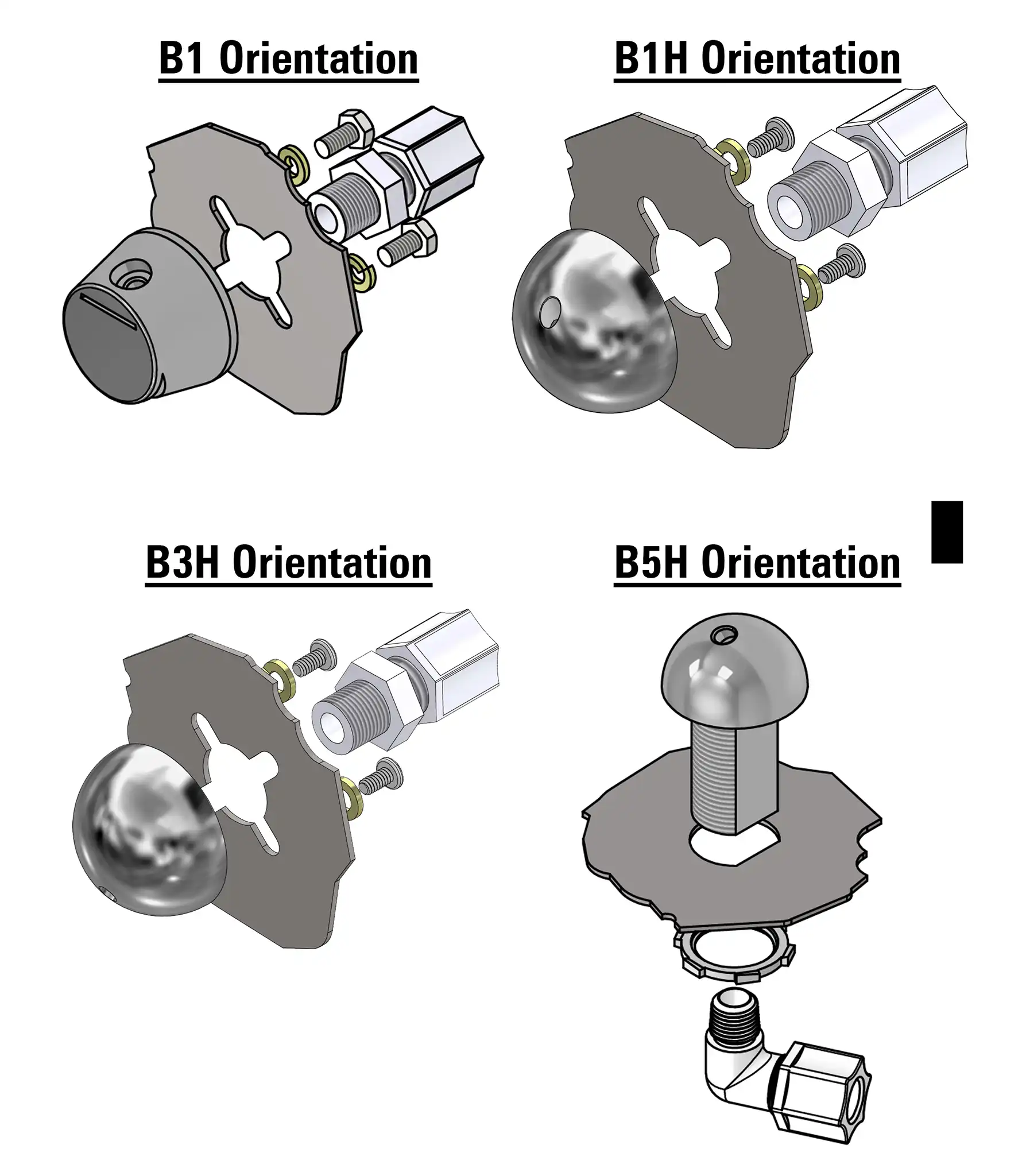

First, confirm the style bubbler ordered. This will determine orientation
B1 Upward Arc
B1H Upward Arc
B3H Downward Stream
B5H Drinking Fountain Bubbler (Deck
Mounted)
Installation Instructions

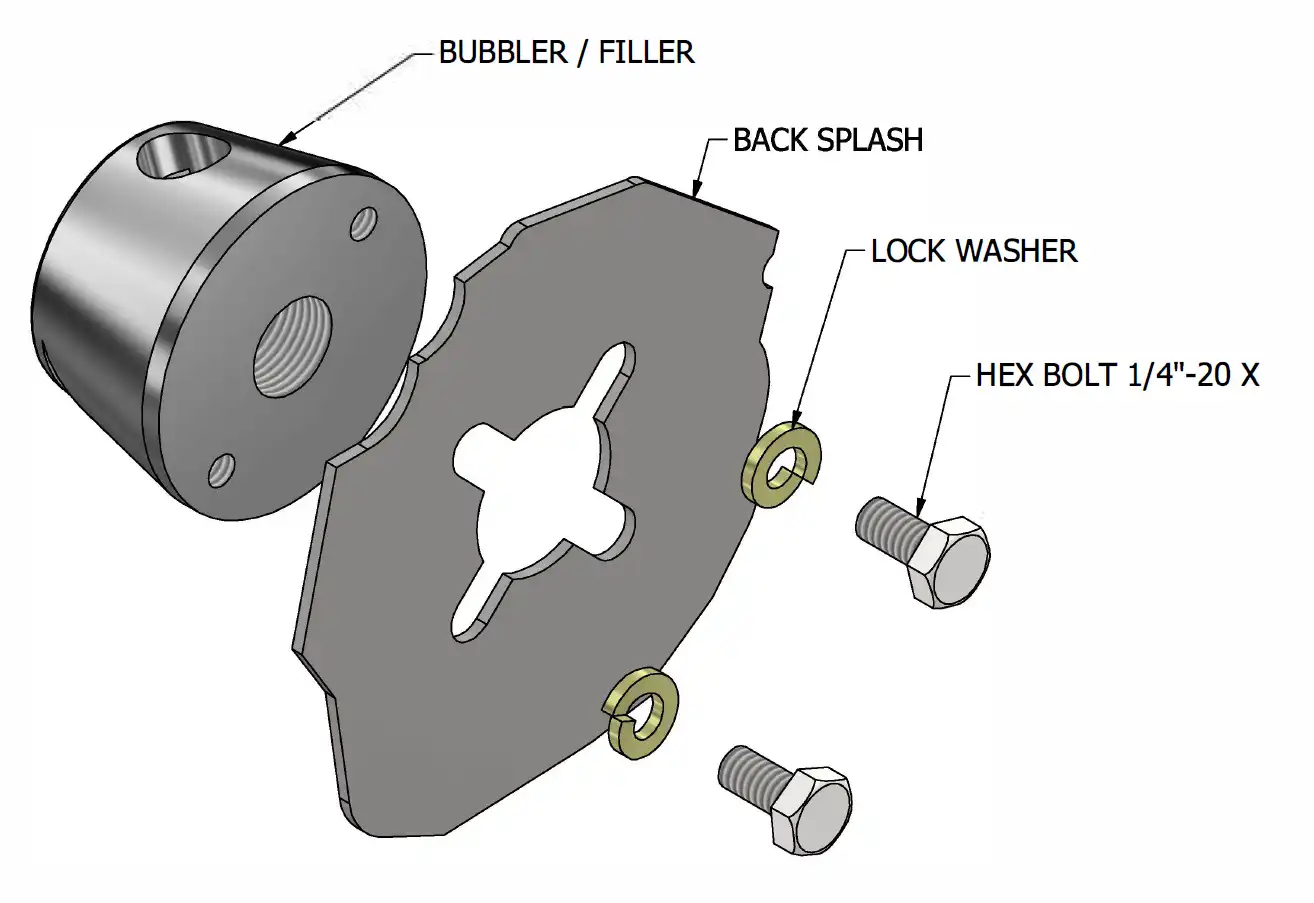

- Assemble bolt & lock washer finger tight through body slots in back splash and threaded holes in bubbler.
- Align lock washer so split is not in slots on back splash as shown.
- Tighten bolts to 10 FT/LB.
- Do not use any pipe compound/pipe dope on the fitting in the back of the bubbler. This can cause leaking.
